1. Use one web guide sensor to detect web for edge, printing line or color difference guiding.

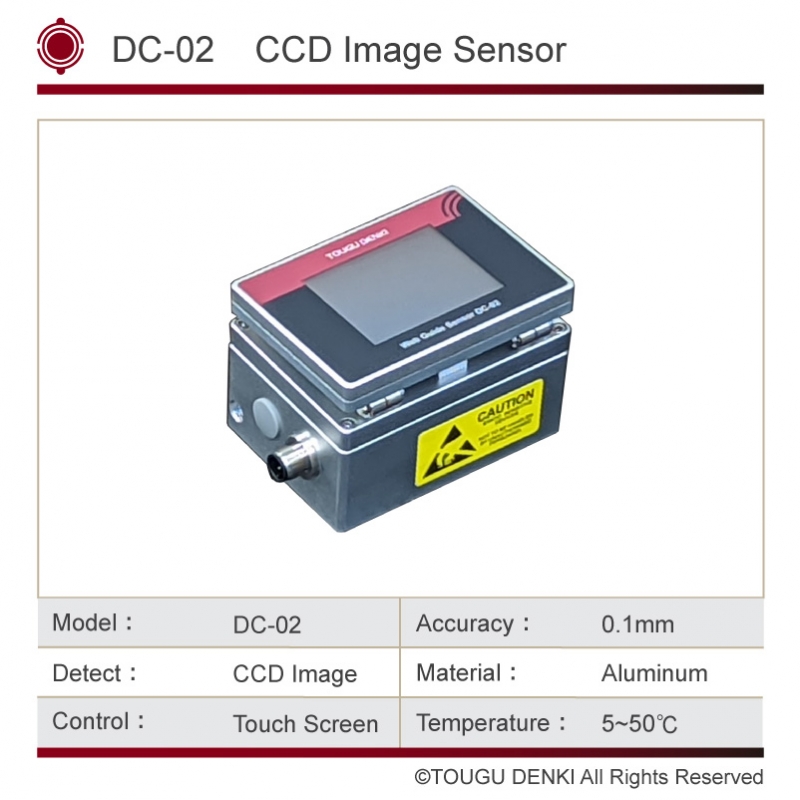

2. Ultrasonic Sensor, Blue Light Sensor, CCD Image Sensor, and other sensors are available to the requirements.
3. Servo Electrical Actuator, thrust 350kgf, load 3.5 tons(COF=0.1), max line speed 350m/min.
4. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.
5. Made in Taiwan. Internal web guiding system has contactless semiconductor control that provides reliability and durability.

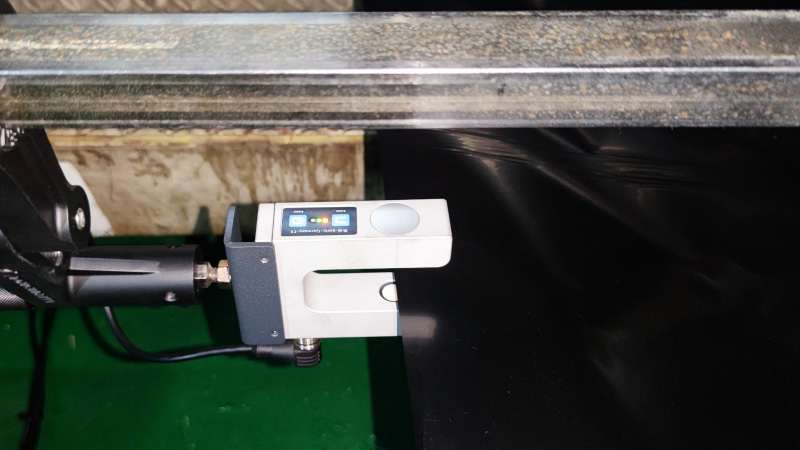

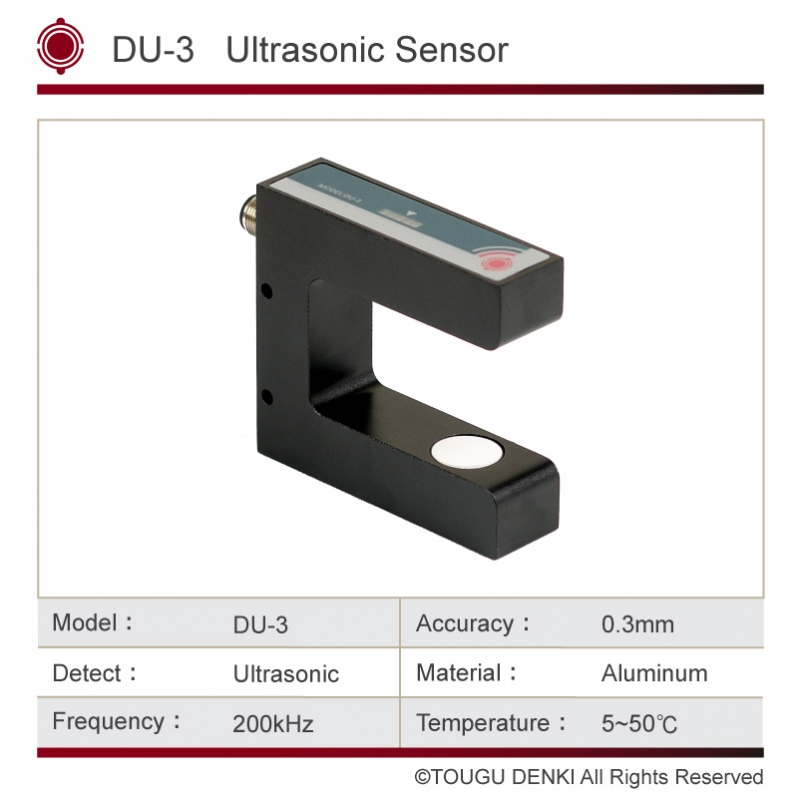

Ultrasonic Web Guide Sensor

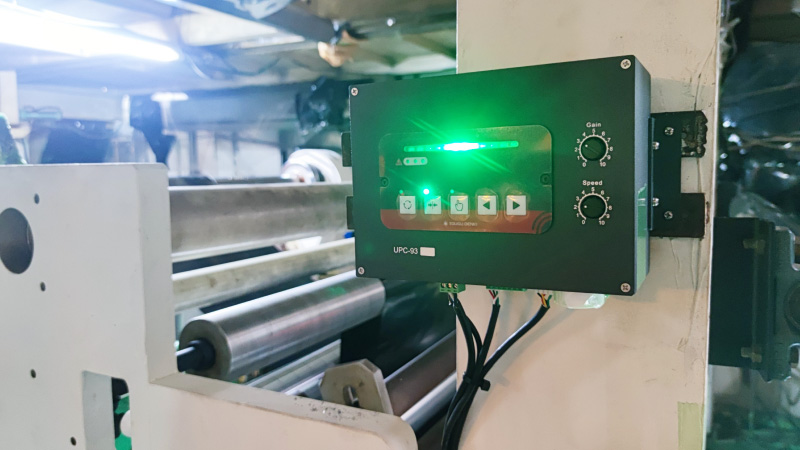

Web Guide Controller

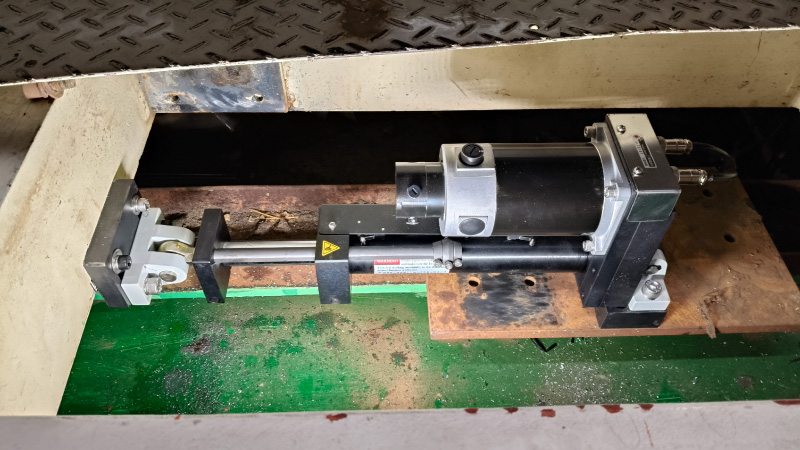

Electric Linear Actuator

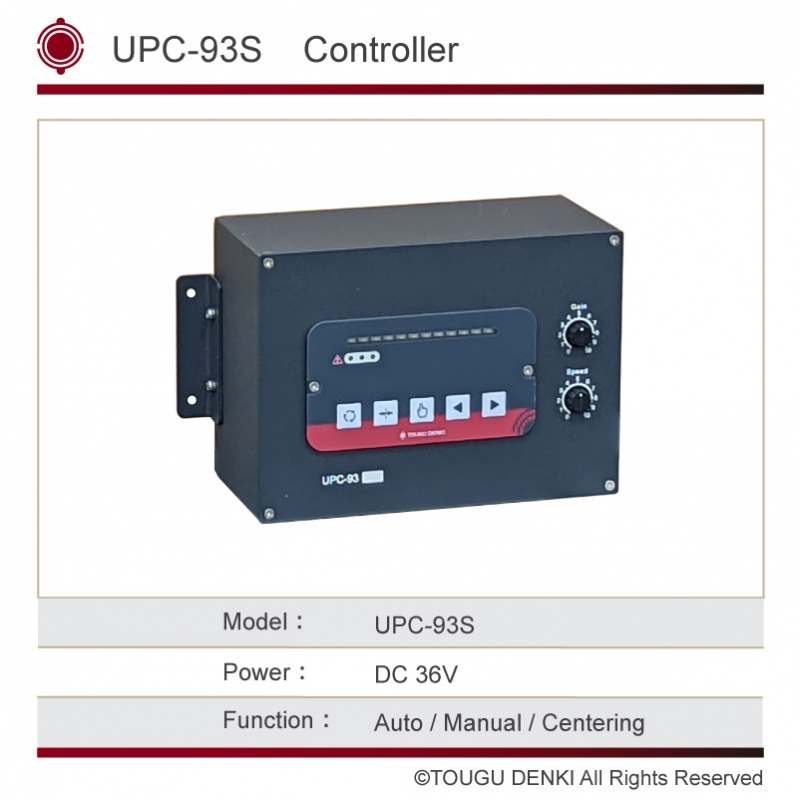

| Model | UPC-93S | ||
| Controller | Wall-mounted / Remote | ||
| Function | Auto / Man / Centering | ||
| Sensor | DU Ultrasonic / DP Blue Light / DC Image | ||
| Detect | Edge / Line / Color Difference | ||
| Accuracy | 0.1mm | ||

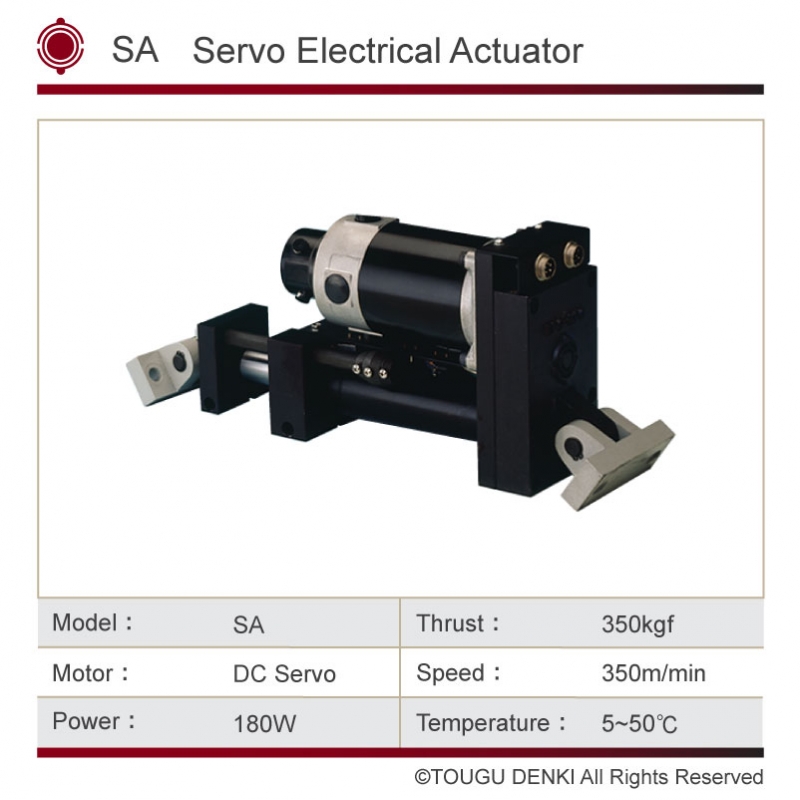

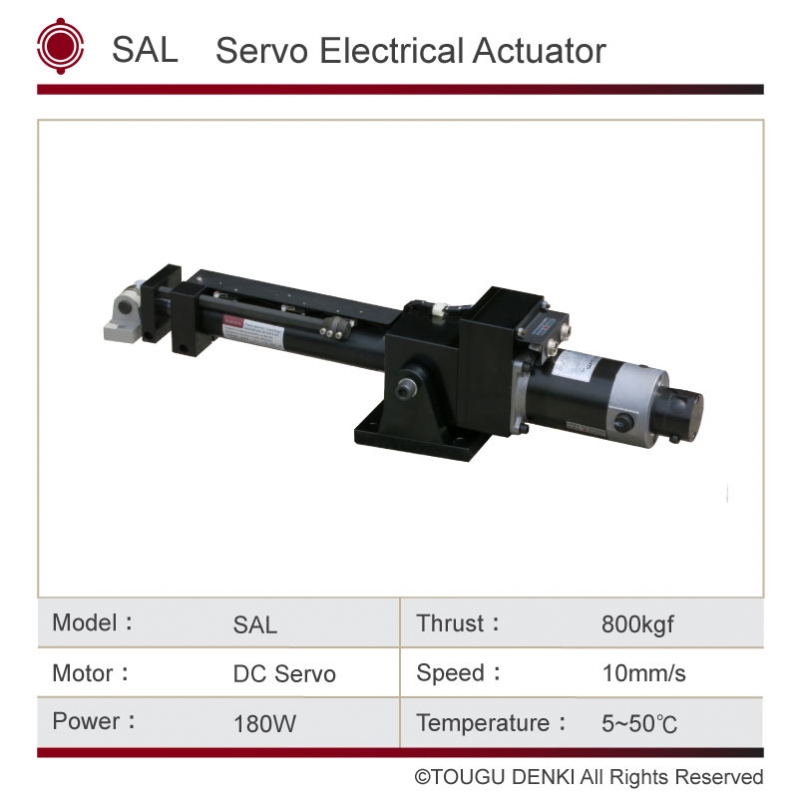

| Actuator | SA Servo Electrical | SAL Servo Electrical | |
| Speed | 350m/min | 100m/min | |
| Load (COF=0.1) | 3500KG | 8000KG | |
| Stroke | 70 / 140 / 280 mm | ||
| Power | DC 360V | ||
| Temperature | 60℃ | ||
