1. Use one web guide sensor to detect web for edge, printing line or color difference guiding.

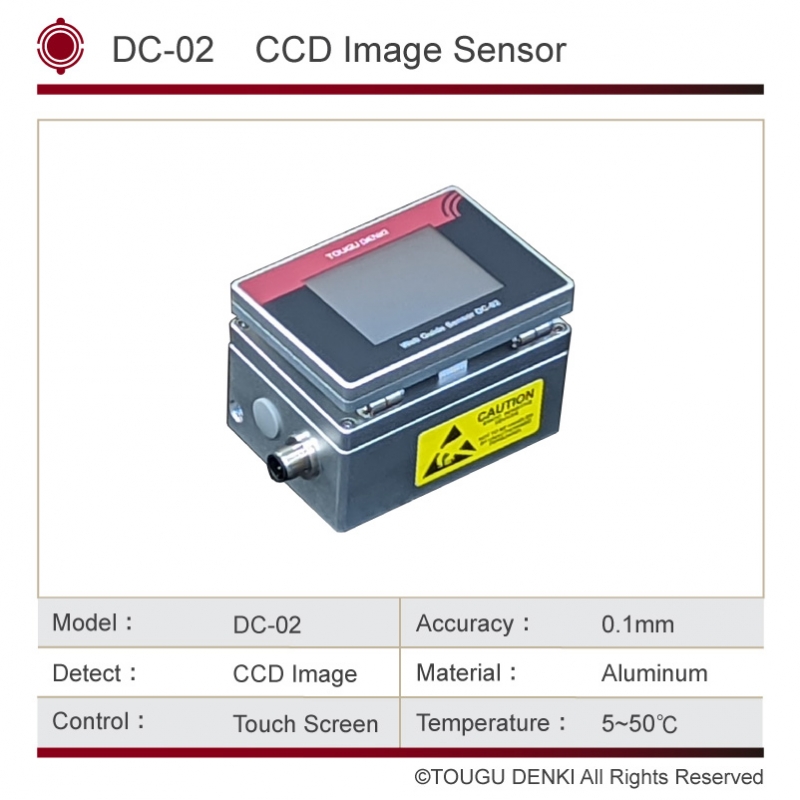

2. Ultrasonic Sensor, Blue Light Sensor, CCD Image Sensor, and other sensors are available to the requirements.

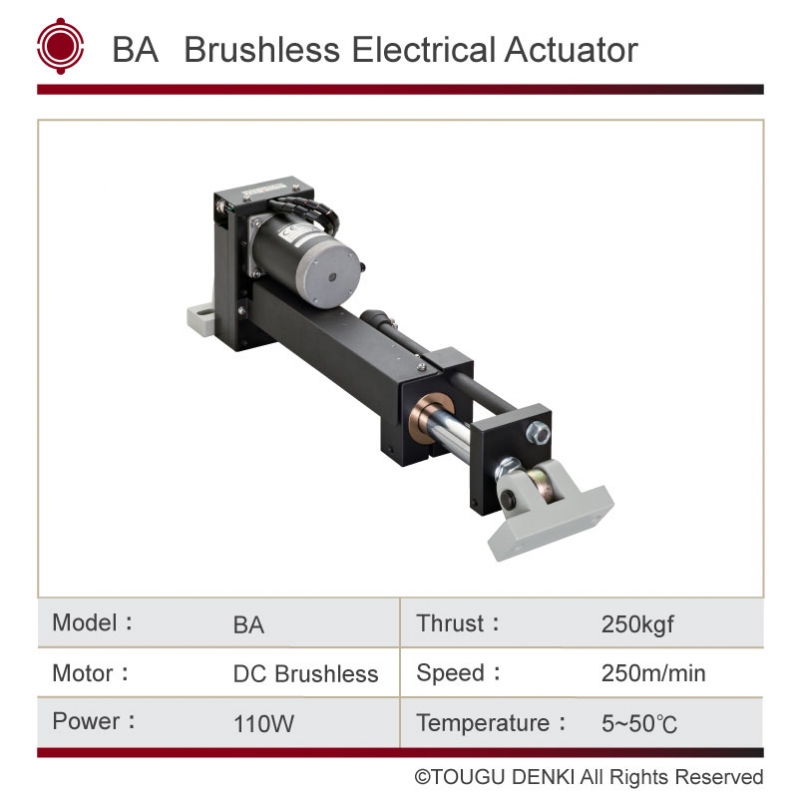

3. Brushless Electrical Actuator, thrust 250kgf, load 2.5 tons(COF=0.1), max line speed 250m/min.
4. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.
5. Made in Taiwan. Internal web guiding system has contactless semiconductor control that provides reliability and durability.

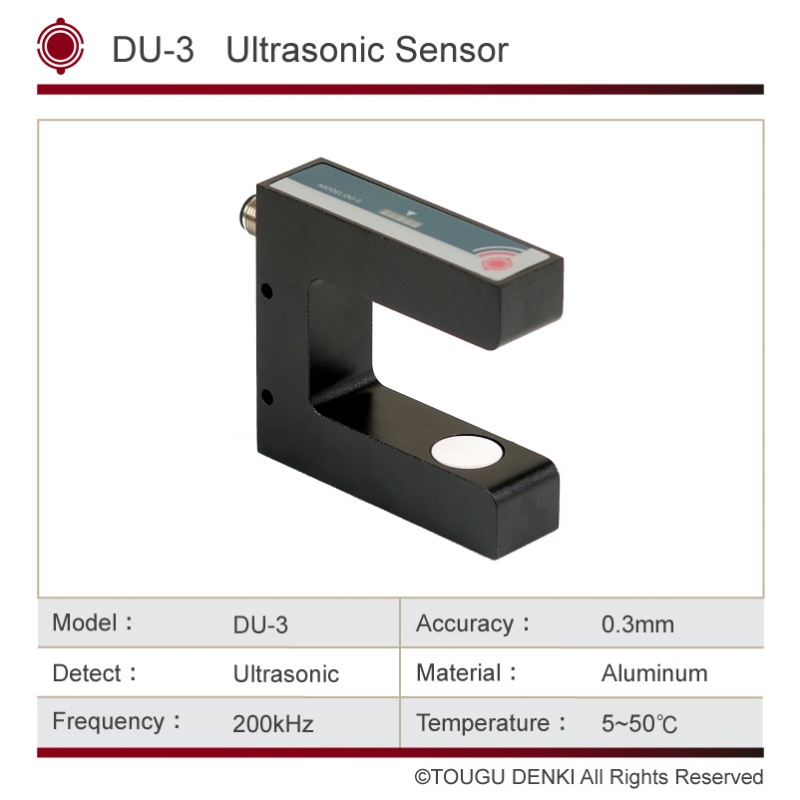

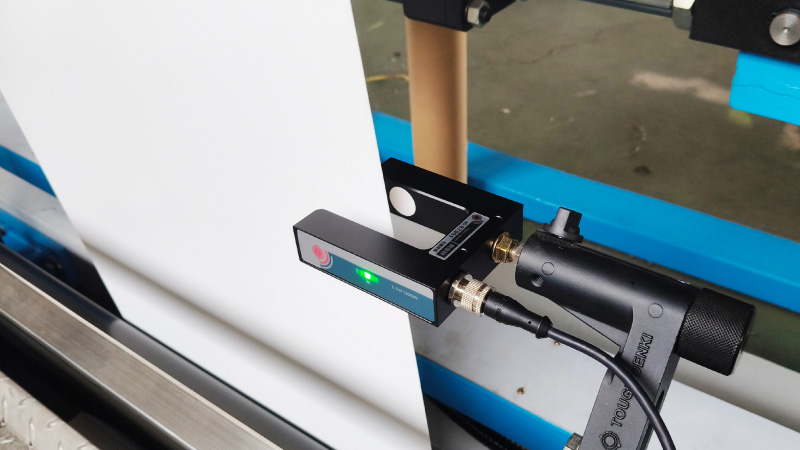

Ultrasonic Web Guide Sensor

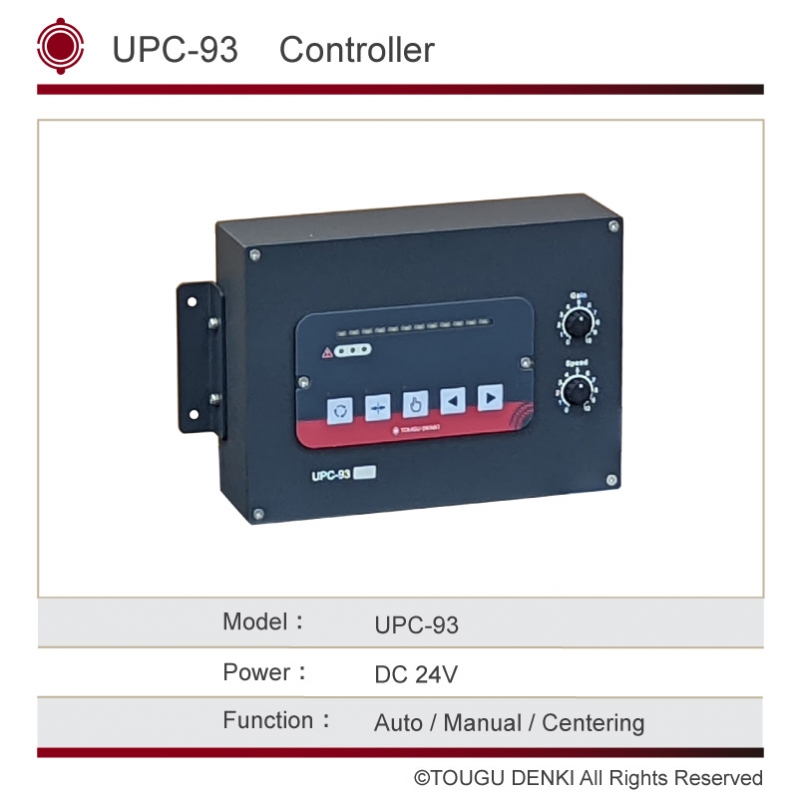

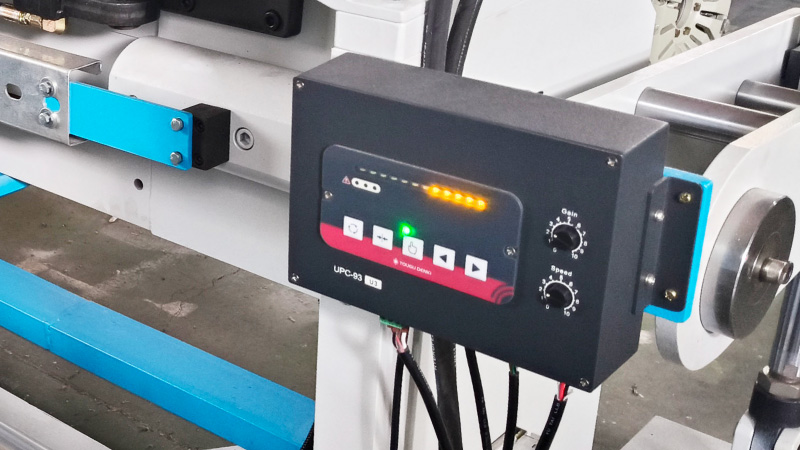

Web Guide Controller

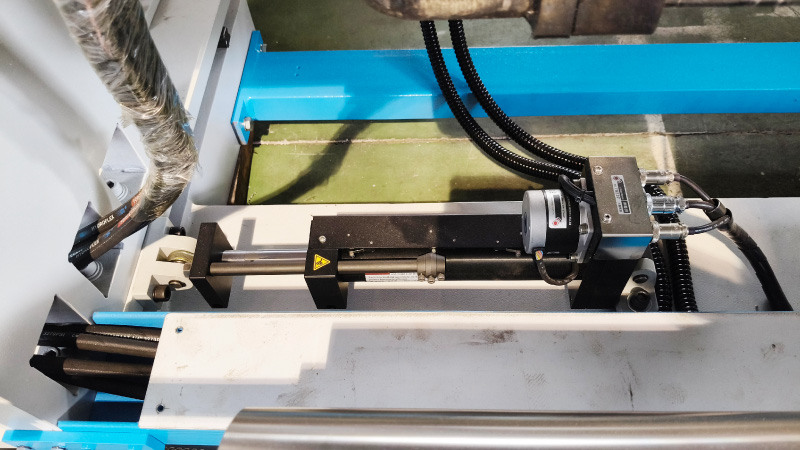

Electric Linear Actuator
| Model | UPC-93 | ||
| Controller | Wall-mounted / Remote | ||
| Function | Auto / Man / Centering | ||
| Sensor | DU Ultrasonic / DP Blue Light / DC Image | ||
| Detect | Edge / Line / Color Difference | ||
| Accuracy | 0.1mm | ||
| Actuator | BA Brushless Electrical | ||
| Speed | 250m/min | ||
| Load (COF=0.1) | 2500KG | ||
| Stroke | 70 / 140 / 280 mm | ||
| Power | DC 24V | ||
| Temperature | 60℃ | ||
