1. Ultrasonic web guiding sensor, which is suitable for clear film, opaque film, light-sensitive materials, paper, foil…etc.
2. High frequency ultrasonic technology, the system is not affected by the transparency of web, high dust, ambient light.

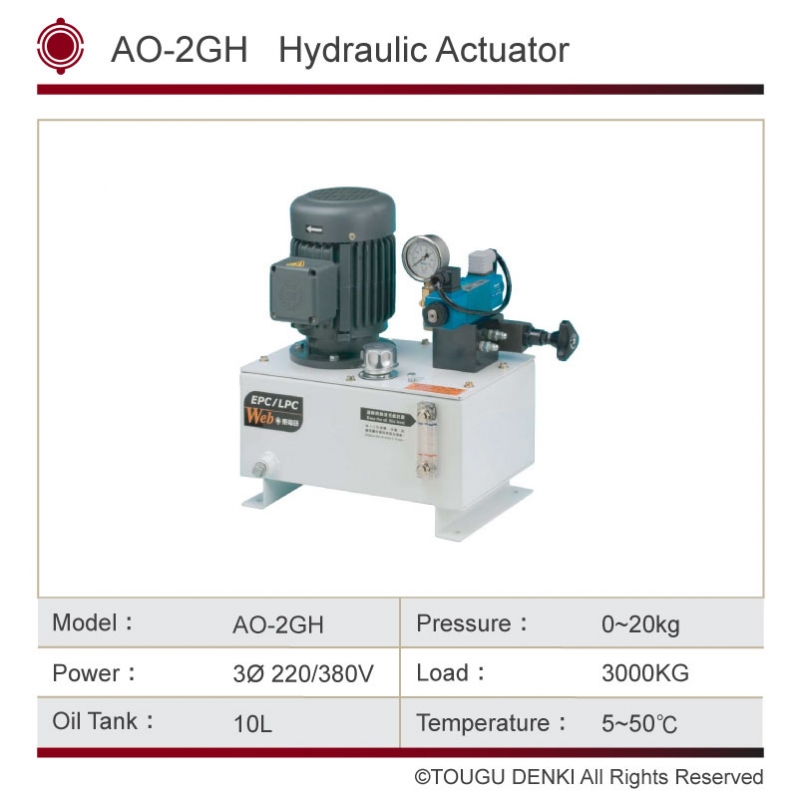

3. Hydraulic Actuator is consistent quality, high thrust for load 3 tons, low noise, no oil leakage.
4. Adjustable trace speed for the requirements.
5. Made in Taiwan. Internal web guiding system has contactless semiconductor control that provides reliability and durability.

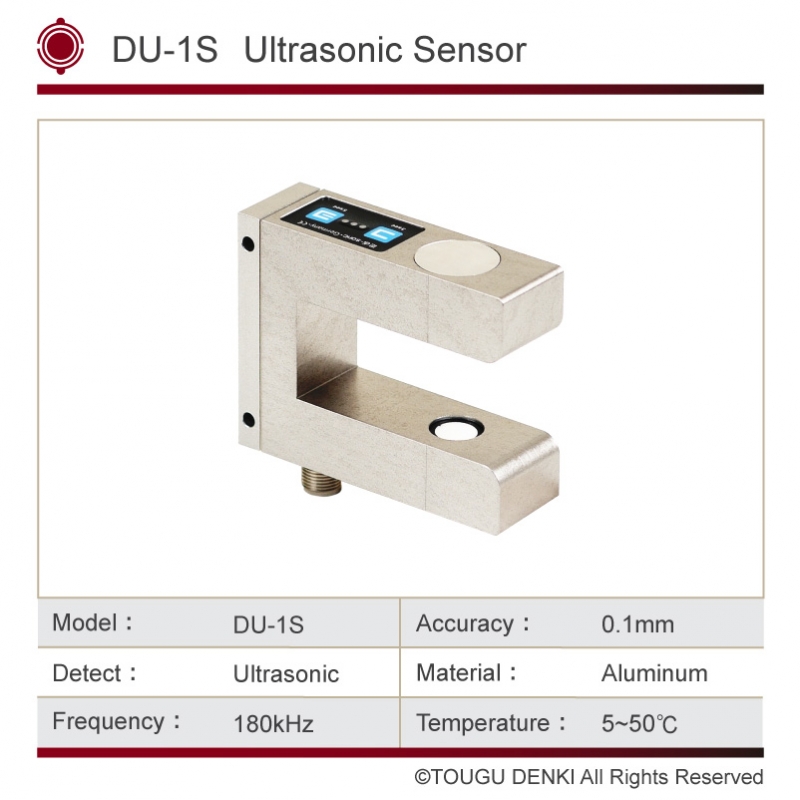

6. Germany Ultrasonic web guiding sensor DU-1S is selectable, accuracy 0.1mm, protect class IP67.
Ultrasonic Web Guiding Sensor
Hydraulic Actuator and Controller

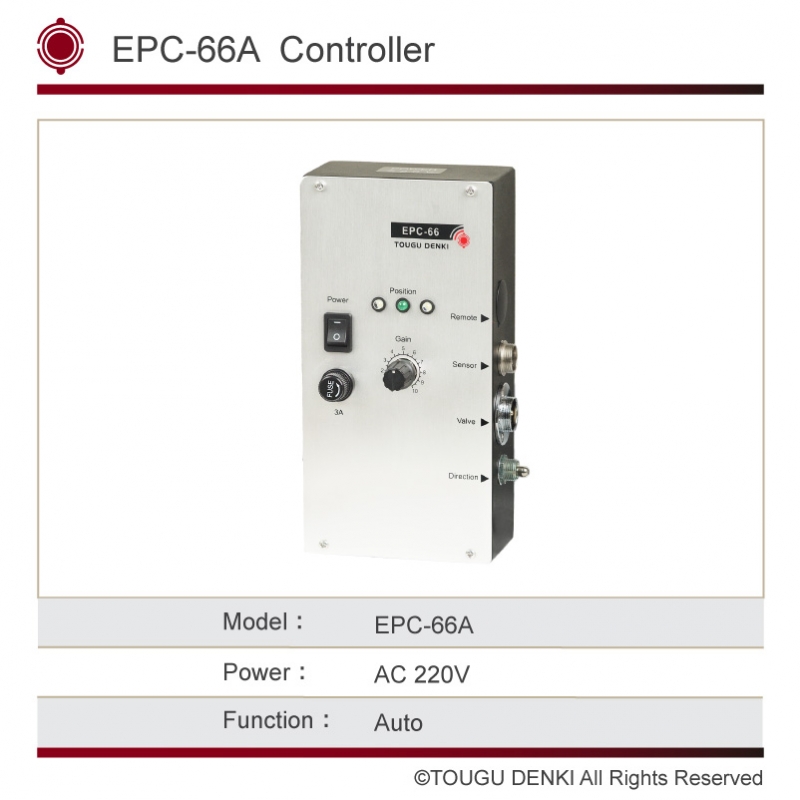

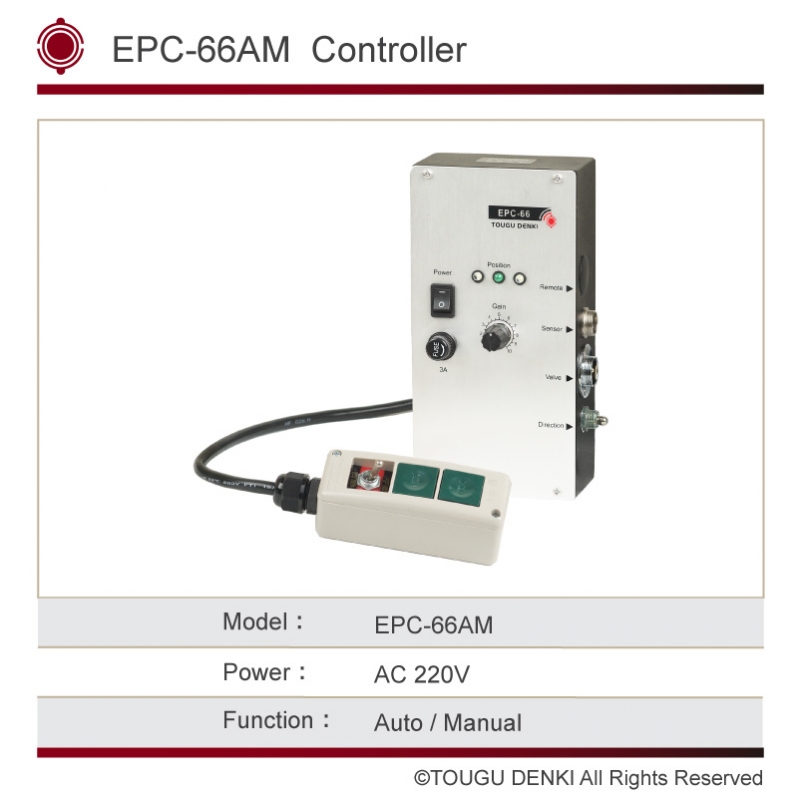

| Model | EPC-66A | EPC-66AM | |
| Controller | Fixed on the Hydraulic System | ||
| Function | Auto | Auto / Man | |

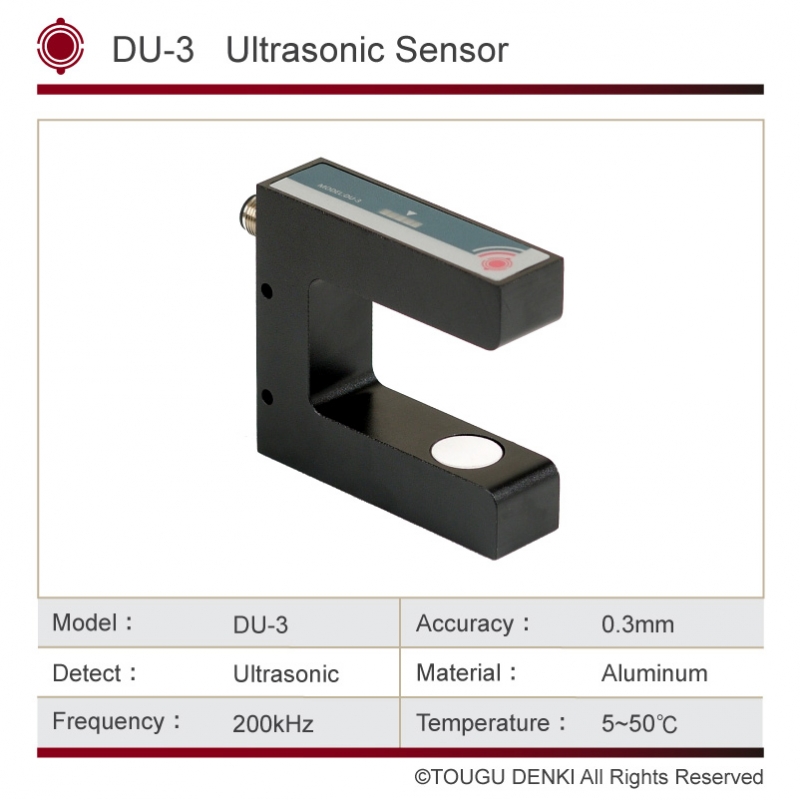

| Sensor | DU-3 (Taiwan) | DU-1S (Germany) | |
| Detect | Edge | ||
| Accuracy | 0.3mm | 0.1mm | |
| Actuator | AO-2GH Hydraulic | ||
| Cylinder | Φ40~80, stroke 50~500mm, option | ||
| Speed | 200m/min | ||
| Load (COF=0.1) | 3000KG | ||
| Power | Controller 1Φ AC 220V | ||
| Hydraulic System 3Φ AC 220V / 380V | |||
| Temperature | 60℃ | ||
※ Special load or power requirements can be customized
