 Blue Light Sensor DP-3
|
|---|
 Wall-mounted EPC-86F

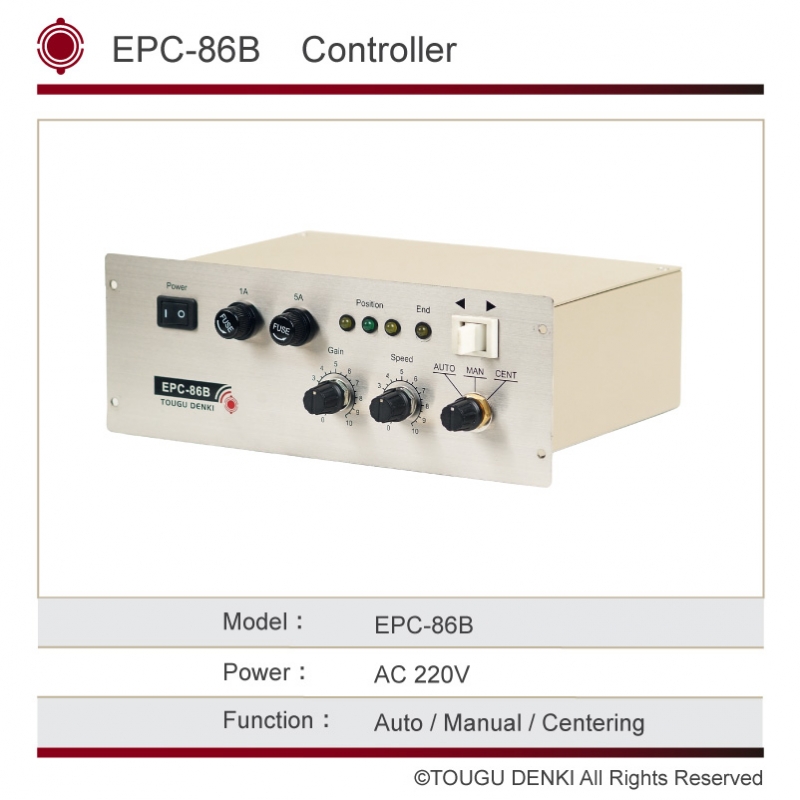

 Insertion EPC-86B
 Wall-mounted EPC-86H
|
|---|
 Electrical Actuator AD-24
|
|---|
1. Blue Light edge guiding sensor, which is suitable for paper, metal, nonwoven ,cloth, clear and opaque film, sound-permeable materials…etc, and special inner edge guiding.
2. Unique blue light source, the system is not affected by the ambient light.
3. Electrical Actuator, thrust 200kgf, load 2 tons(COF=0.1), max line speed 200m/min.
4. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.
5. Made in Taiwan. Internal web guiding system has contactless semiconductor control that provides reliability and durability.
| Model | EPC-86H | EPC-86F | EPC-86B |
| Controller | Wall-mounted | Wall-mounted | Insertion |
| Function | Auto / Man / Centering | ||
| Sensor | DP-3 Blue Light Sensor | ||
| Detect | Edge / Inner Edge | ||
| Accuracy | 0.3mm | ||
| Actuator | AD-24 Electrical | ||
| Speed | 200m/min | ||
| Load (COF=0.1) | 2000KG | ||
| Stroke | 70 / 140 / 280 mm | ||
| Power | 1Φ AC 220V | ||
| Temperature | 60℃ | ||
