1. Special sensor can be used in Vacuum, it works very accurately in a high vacuum 10-7 Torr condition.
2. Unique technology in the world, the sensor is Anti-Corrosion, Acid and Alkali-Proof.
3. Detects transparent and opaque materials.
4. Brushless Electrical Actuator, thrust 250kgf, load 2.5 tons(COF=0.1), max line speed 250m/min.
5. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.
6. Made in Taiwan. Internal web guiding system has contactless semiconductor control that provides reliability and durability.

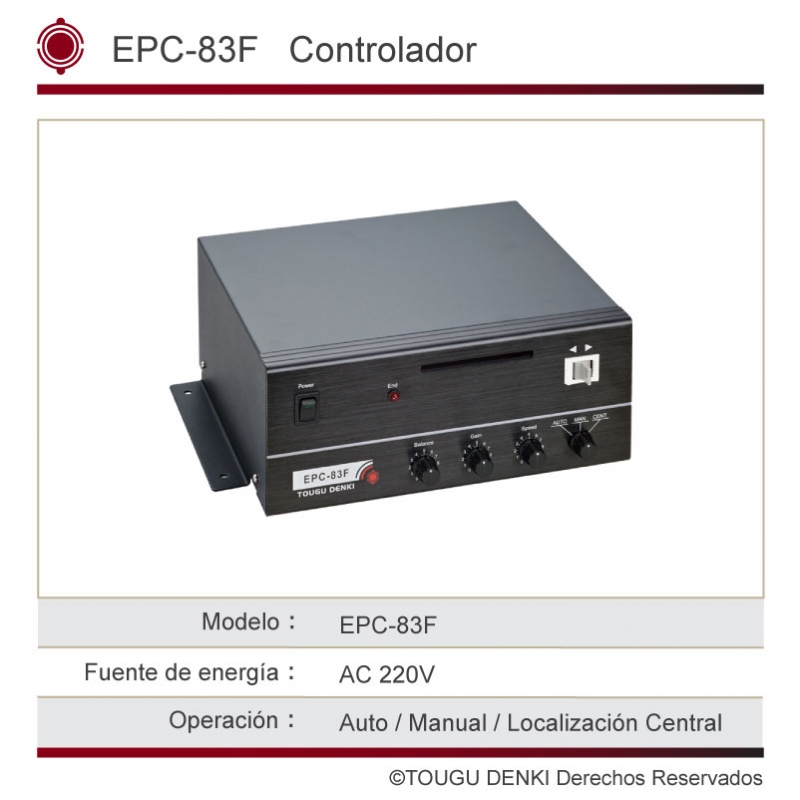

| Modelo | EPC-83F | EPC-83V | EPC-83HT | EPC-83VT |
| Operación | Auto / Man / Localización Central | |||
| Sensor | DS-7V | DS-40VF | DS-40HT | DS-40VF |
| Tipo de Detección | Borde | |||
| Precisión | 0,1mm | |||
| Actuador | BA Eléctrico sin Escobillas | |||
| Velocidad | 250m/min | |||
| Carga (COF=0,1) | 2500KG | |||
| Carrera | 70 / 140 / 280 mm | |||
| Fuente de energía | 1Φ AC 220V | |||
| Temperatura de Sensor | 60℃ | 250℃ | ||
|
Sensor Model |
Anti- Corrosion |
Chemical Gas |
Plus Vacuum Wall Connector |
Vacuum 10-7Torr |
Transparent Material |
Opaque Material |
|
DS-7V |
V | V |
V |
|||
|
DS-40VF |
V | V | V | V | V | V |
|
DS-40HT |
V | V | V | V | ||
|
DS-40VT |
V | V | V | V | V | V |
